Description

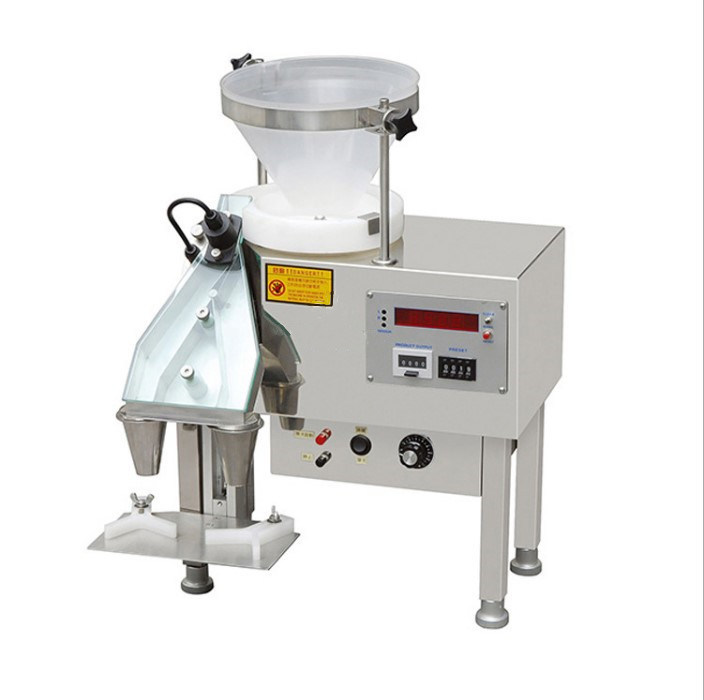

Pharmaceutical Pill Counter Machine Small Volume Tablet Counting Machine
1. The number of counter can be set arbitrarily from 0 to 9999.
2. The entire machine is made of stainless steel material, which meets GMP requirements.
3. Easy to operate, no special training required for operation.
4. Special electric eye protection device can ensure accurate counting of particles.
5. Rotary counting design, fast counting and smooth operation.
6. The rotational speed of the number of particles can be adjusted infinitely based on the speed of manual bottle placement.
7. The machine is equipped with a vacuum device inside to avoid the impact of dust on the machine.
8. Vibration feeding design, the vibration frequency of the particle storage tank can be seen according to the needs of drug particle delivery, with infinite speed regulation.
YL-4: Two bottles at a time, automatically counting the other two bottles after two bottles are counted, making it convenient for both hands to pick up and place the bottles, and the speed is twice as fast.
YL-2: One bottle at a time, automatically counting another bottle after counting, making it convenient for people to manually pick up and place bottles.
Features:
1. It has a small volume, light weight, simple operation, and high accuracy
2. Equipped with a protective device for one click start, safe and reliable
3. Vibration feeding design, with adjustable amplitude as needed
4. Control panel: equipped with a vibration speed controller and intelligent control of several particles through switch buttons
5. Discharge port: The diameter of the discharge port can be customized according to customer needs, with a standard diameter of 22/28MM
6. Electric eye protection device, infrared counting improves counting accuracy
7. The v type positioner can fix the position of the medicine bottle, which can be adjusted back and forth
Pill Counter Machine Main parameter:
| Model |
YL-2A |
| Voltage |
110/220V, 50hz/60hz, 300w |
| Hopper volume |
1.8L (#1 capsule about 2500pcs) |
| Bottle height |
less than 180mm |
| Capacity |
500-1000 tabs/min |
| Counting range |
1-9999(adjustable) |
| Remark |
Soft-capsule can't be counted |
| Weight |
30kg |
| Dimesnion |
427*327*525mm |
Machine Structure:
Real Photos:
Application:
