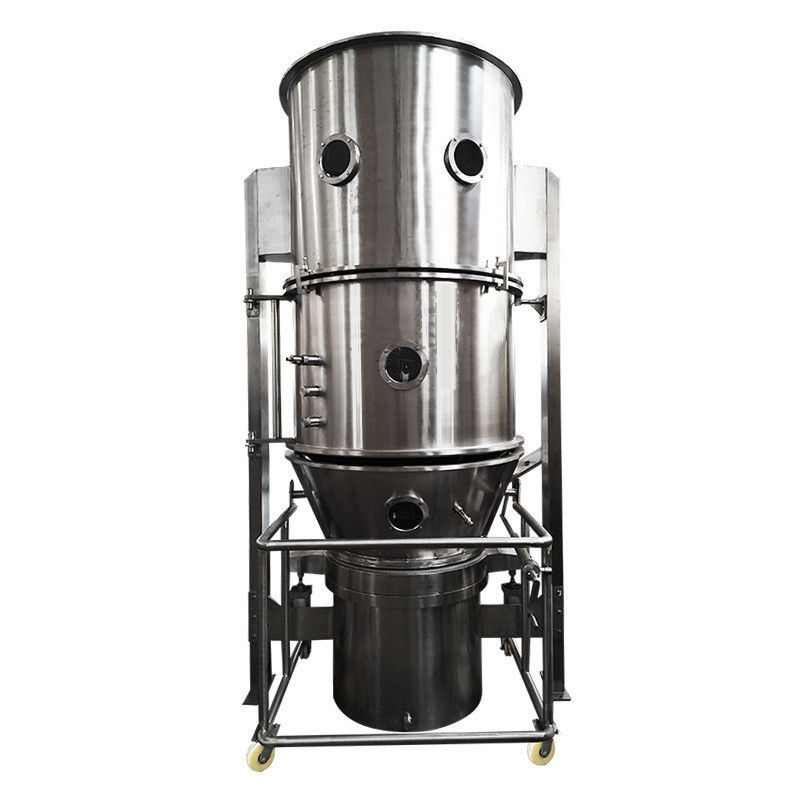

Granulation machine FG-120 Vertical Boiling Dryer One-Step Fluid Bed Granulator

Boiling Dryer One-step Granulation Machine

The granulation machine material (particles or fine powder) to be dried is put into the hopper of the dryer. After being dust removed by the medium efficiency filter, the air is heated by the heater to the required temperature for drying, and then enters the main tower. When it passes through the porous plate at the bottom of the hopper, the material inside the hopper is fluidized while removing water and drying. After the water evaporates, it is filtered by the bag filter with the exhaust air and discharged by the fan.

The fine powder that rises with the wind during the drying process is captured by the cloth bag, And return to the fluidized bed through the ash cleaning device.

Technical description:

1. The air intake system adopts primary and medium efficiency air filtration devices, and is equipped with a 200 mesh stainless steel mesh behind the heater to ensure that the dry air meets the purification requirements.

2. Advanced cylinder vibration bag dust removal method is adopted, and the cloth bag is made of anti-static fiber material, without fiber shedding phenomenon. The structure of the cloth bag is fast loading, which is easy to replace and clean.

3. The equipment is made of stainless steel, with no dead corners, easy to clean, disinfect, and sterilize

4. The sealing method of the hopper is cylinder driven, ensuring good sealing.

Main Parameter of granulation machine

Features:

1. Reduce dust flying

Reduce dust flying by granulating powder, changing flowability; Changing its solubility through powder granulation:

2. One step granulation

Mixing, granulation, drying, and completing in one machine (one-step granulation method); The adhesive atomizer adopts a multi fluid spray gun, with uniform mist particles and greatly improved product qualification rate:

3. Even mist particles

The adhesive atomizer adopts a multi fluid spray gun, with uniform mist particles and greatly improved product qualification rate; The equipment has no dead corners, and loading and unloading materials are lightweight, fast, and thoroughly rinsed.
