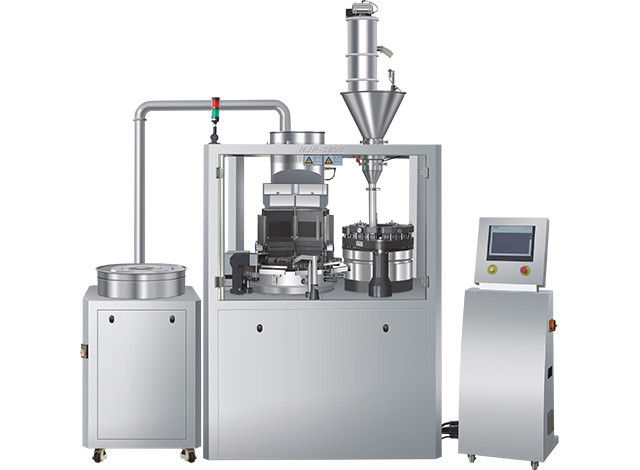

High Speed Hard Gelatin Capsule Filling Machine For Medical Pharmacy NJP-3800C

The hard gelatin capsule filling machine adopts a fully enclosed ten station turntable, and the upper and lower modules are designed with a double row 27 hole arrangement.

1. The turntable uses airtight technology to fill the inside of the turntable with gas, creating a pressure difference between the inside and outside of the turntable, preventing the powder from entering the inside of the turntable.
2. Lowering the center of gravity of the transmission mechanism significantly reduces the vibration during equipment operation, greatly improving the stability and service life of the machine.
3. The transmission camshafts are replaced by slot camshafts, which increase the transmission force and reduce mechanical failures caused by vibration and spring fatigue.
4. Automatic lubrication system, timed automatic lubrication of various transmission components to reduce pollution caused by manual operation.
5. Standard clamps are used for all interfaces of the feeding section, making loading, unloading, and cleaning more convenient.
6. The cleaning and capsule extraction stations are equipped with visual glass for easy observation of the machine's operating status.
7. The intelligent remote control of the host allows for easy operation and personnel safety by holding a remote control to control the jog and trial operation after mold cleaning or equipment maintenance.

NJP-3800C high speed hard gelatin capsule filling machine for medical pharmacy features:

1. The overall appearance of the machine is beautiful, with fine craftsmanship, simple operation, and convenient use.
2. The filling seat is integrated with the measuring disc, which prevents deviation between the measuring disc and the filling rod, avoids friction between the filling rod and the measuring disc, improves loading accuracy, and extends service life.
3. It can automatically remove defective capsules, recover drugs from defective capsules, and reuse them to improve economic benefits.
4. This machine is easy to disassemble and clean. Various models of molds can be exchanged (1000 and 1200 molds can be used interchangeably on the same machine, while 600 and 800 molds can be used interchangeably on the same machine) to meet the requirements of different production capacities.

NJP-3800C high speed hard gelatin capsule filling machine for medical pharmacy parameter:
