Automatic Capsule Filling Machine

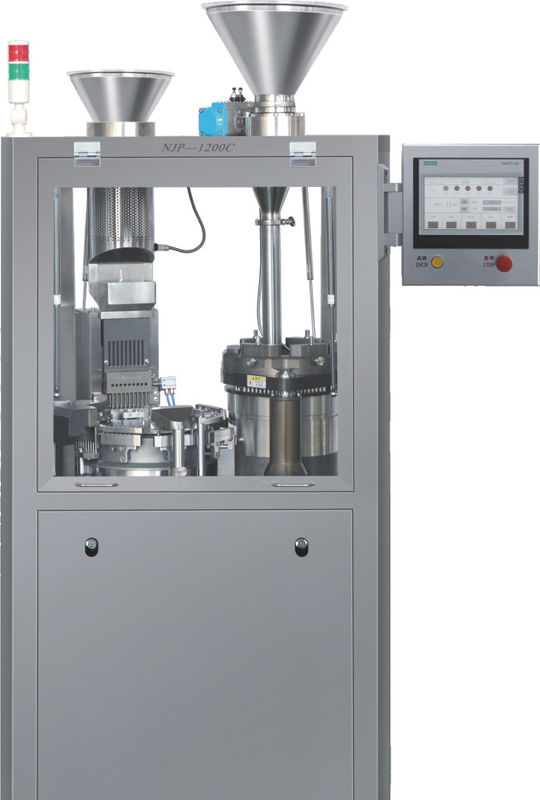

NJP-1200C capsule automatic filling machine fills powder, particles and tablet materials into empty capsules.

The device conducts filling through stopples, batches and frequency control.

It is suitable for automatically powder filling, capsule shells separating, (eliminating wasted contents) sealing up the powder or particle drugs to finished products.

Our factory indigenously developed this filling device according to the advantages of similar devices at home and broad, as well as the practical national conditions.

The production process is completely in conformity with GMP regulations.

Capsule automatic filling machine 72000 capsule/h NJP series capsule filling machine Features:

1. The filling base is designed as a three-dimensional adjustment mechanism, which fully solves the problem of powder leakage in the production project, avoids the friction between the metering disk and the copper disk, improves the accuracy of loading, and extends the service life.
2. The cam of the transmission part of the machine adopts 40C steel, surface nitriding treatment, nitriding depth 0.5-1.0mm, HR55-60; slot cam, plane slot cam: 38CrMoAL quenching platform, surface nitriding treatment, nitriding depth 0.5- -1.0mm, GRC55~60; Guide post: Gcr15 high frequency quenching, depth 0.7~1.0mm, HRC55~60; accessories are not easy to wear.
3. For the lubricity of the machine and the service life of the accessories, our company adds an automatic oil pump on the basis of the old equipment, so that each cam and gear is provided with an oil pipe for real-time fueling (fueling is automatic, time , Adjustable times), saving maintenance time.
4. An air compressor device is added to the capsule discharge port, which effectively solves the problem caused by static electricity blocking the capsule at the discharge port.
5. Improved the design of the turntable mold, using 90 original Japanese linear oil-free bearings, which has improved the service life of the equipment.
6. The design of the metering disk has been increased, thereby improving the uniformity of the powder flow in the metering disk and the powder scraper mechanism, so that the tail loading of each station of the metering disk is consistent with other, effectively controlling the difference of the loading within ±3%.

Capsule automatic filling machine 72000 capsule/h NJP series capsule filling machine Technical Parameter
