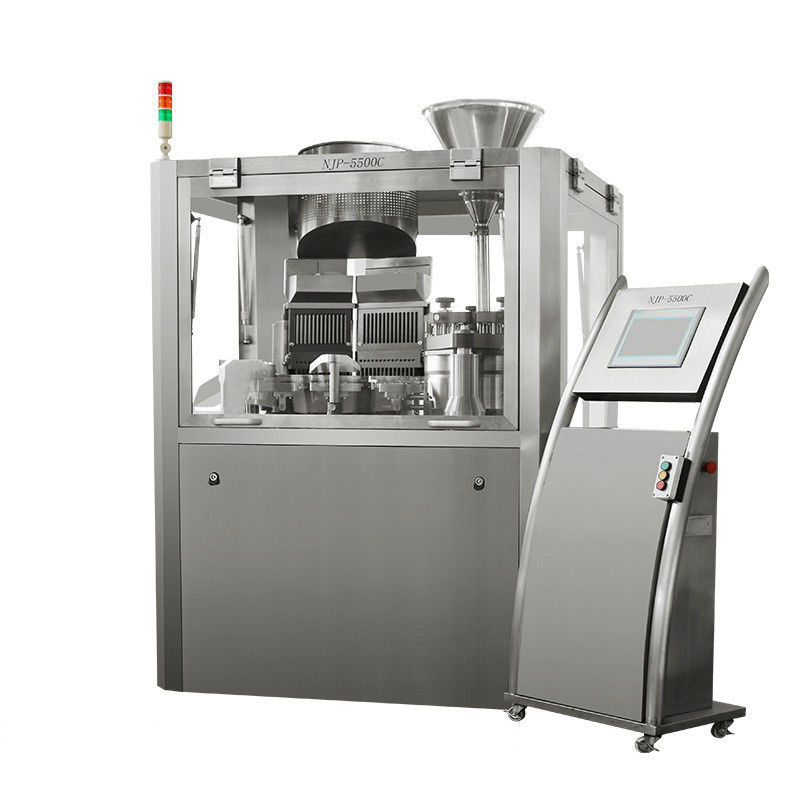

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C
  • High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C
  • High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C
High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C

Place of Origin China
Brand Name FP
Certification GMP
Model Number NJP-5500C
Product Details
Capacity:
330000pcs/hour
Voltage:
220/380V
Capsule Size:
#00B, #00, #1, #2, #3, #4, #5
Dimension:
1548*1313*2305mm
Weight:
3200kg
Type:
00 Capsule Filling Machine, Capsule Filler Machine
Highlight:

capsule filler machine njp

,

size 00 capsule filler machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden packing
Delivery Time
10-15 days
Payment Terms
T/T, Western Union, Money Gram, L/C
Supply Ability
50-100 sets per month
Product Description

Product Description

NJP-5500C high speed pharmacy size 00 capsule filler machine

The NJP-5500C fully automatic hard capsule filler machine is an equipment suitable for large-scale production.
1. The equipment adopts a fully enclosed twelve station turntable, and the upper and lower modules are designed in a three row 40 hole arrangement.
2. The turntable uses airtight technology to fill the inside of the turntable with gas, creating a pressure difference between the inside and outside of the turntable, preventing the powder from entering the inside of the turntable.
3. Lowering the center of gravity of the transmission mechanism significantly reduces the vibration during equipment operation, greatly improving the stability and service life of the machine.
4. The transmission camshafts are replaced by slot camshafts, which increase the transmission force and reduce mechanical failures caused by vibration and spring fatigue.
5. Automatic lubrication system, timed automatic lubrication of various transmission components to reduce pollution caused by manual operation.

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 0

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 1

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 2



NJP-5500C high speed pharmacy size 00 capsule filler machine Features:

1. The hollow capsule filling machine is a new generation of closed capsule filling machine, with a patented turntable and filling mechanism. The fully automatic filling capsule machine has a loading accuracy error of ≤ 3%.
2. The traditional Chinese medicine capsule filling machine can accurately fill various specifications of hard capsules,
3. Multi functional hard capsule filling machine with oil-free bearings, pollution-free, and maintenance free,
4. The multifunctional fully automatic capsule filling machine fully complies with GMP production requirements,
5. The touch screen of the high-speed hard capsule filling machine is equipped with recording and displaying information on shifts, production, cumulative production, and shifts. It also has real-time counting function and can be equipped with printing equipment according to customer needs.

6. It can print production dates, batch numbers, and codes.





NJP-5500C high speed pharmacy size 00 capsule filler machine Technical Parameter

Model NJP-5500C
Production capacity 330000pcs/hour
Machine weight 3200kg
Dimension 1548*1313*2305mm
Voltage 220/380V 50HZ
Motor 12kw
Holes number 40 holes
Vacuum -0.02 to -0.06MPa
Dust 24.5Kpa, 210m3/h
Air compressure 12m3/h, 0.3-0.4MPa
Noisy 78dBA
Accuracy Empty 99.99%, Full 99.98%
Suitable 000#-5#
Filling accuracy West-medicine 3%, Chines-medicine 4%
Filling type Powder, granule, pellets, tablets



NJP-5500C high speed pharmacy size 00 capsule filler machine Advantage:

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 3

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 4

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 5

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 6



NJP-5500C high speed pharmacy size 00 capsule filler machine detail show:

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 7

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 8

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 9

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 10

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 11



NJP-5500C high speed pharmacy size 00 capsule filler machine Detail photos show:

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 12

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 13

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 14

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 15

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 16

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 17

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 18

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 19

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 20

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 21





NJP-5500C high speed pharmacy size 00 capsule filler machine Application:

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 22

NJP-5500C high speed pharmacy size 00 capsule filler machine pharmacy process:

High Speed Pharmacy Size 00 Capsule Filler Machine NJP-5500C 23
