Low Noise Capsule Filling Machine Semi Automatic Capsule Manufacturing Machine

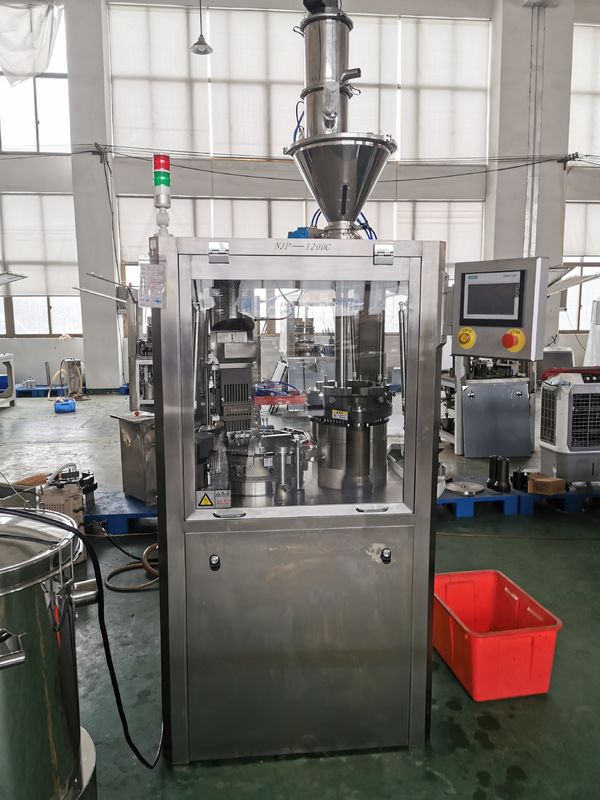

NJP-1200C capsule manufacturing machine is an upgraded version of the semi-automatic capsule filling machine, mainly used for fill powder, granules and pellets into hollow capsules (000 #, 00 #, 0 #, 1 #, 2 #, 3 #, 4 #, 5 #).

The product can automatically and continuously complete the production process of seeding, dividing, filling, locking, removing waste, and outputting finished products.

It has the advantages of precise loading, stable operation, and dust-free, and meets GMP production requirements.

It is an ideal equipment for filling Chinese and Western medicine and health products in pharmacy field.

Automatic njp 1200 capsule filling machine Low Noise capsule manufacturing machine Features:

1. The filling base is designed as a three-dimensional adjustment mechanism, which fully solves the problem of powder leakage in the production project, avoids the friction between the metering disk and the copper disk, improves the accuracy of loading, and extends the service life.
2. The cam of the transmission part of the machine adopts 40C steel, surface nitriding treatment, nitriding depth 0.5-1.0mm, HR55-60; slot cam, plane slot cam: 38CrMoAL quenching platform, surface nitriding treatment, nitriding depth 0.5- -1.0mm, GRC55~60; Guide post: Gcr15 high frequency quenching, depth 0.7~1.0mm, HRC55~60; accessories are not easy to wear.
3. For the lubricity of the machine and the service life of the accessories, our company adds an automatic oil pump on the basis of the old equipment, so that each cam and gear is provided with an oil pipe for real-time fueling (fueling is automatic, time , Adjustable times), saving maintenance time.
4. An air compressor device is added to the capsule discharge port, which effectively solves the problem caused by static electricity blocking the capsule at the discharge port.
5. Improved the design of the turntable mold, using 90 original Japanese linear oil-free bearings, which has improved the service life of the equipment.
6. The design of the metering disk has been increased, thereby improving the uniformity of the powder flow in the metering disk and the powder scraper mechanism, so that the tail loading of each station of the metering disk is consistent with other, effectively controlling the difference of the loading within ±3%.

Automatic njp 1200 capsule filling machine Low Noise capsule manufacturing machine Technical Parameter
