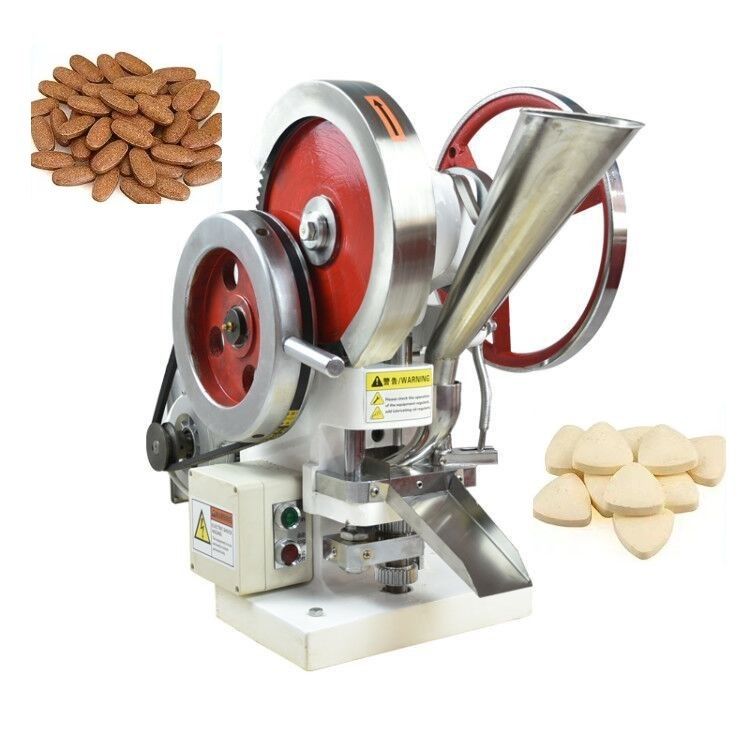

TDP 5T Single Punch Tablet Press Machine 220V 50KN Pressure

TDP 5T Single Punch Tablet Press Machine 220V 50KN Pressure

TDP 5T Single Punch Tablet Press Machine 220V 50KN Pressure

Place of Origin	China
Brand Name	FP
Certification	GMP, CE
Model Number	TDP5

Product Details

Material:

Stainless Steel

Application:

Pharmacy, Food, Chemical, Lab

Punch Die No:

Single

Speed:

Adjustment

Shipping:

DHL, Fedex, UPS

Tag:

Single Punch Tablet Machine, Single Punch Machine

Highlight:

single punch tablet press machine 220v

,

220v single press tablet machine

,

50kn single press tablet machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiation

Packaging Details

Wooden package

Delivery Time

3-5 days

Payment Terms

T/T, Western Union, Money Gram

Supply Ability

50 set per month

Product Description

Product Description

TDP5T Single Punch tablet machine 50KN pressure

TDP-5 single punch tablet compression machine - single punch tablet machine, can be powder granular raw materials pressed into tablets, can be widely applied to pharmaceutical plants, chemical plants, food plants, hospitals, scientific research units, laboratory trial production and small batch production.

TDP5T Single Punch tablet machine 50KN pressure Advantage:
A small single punch stamping machine with good performance, light operation and convenient movement, Verious granular, crystalline or powder raw materials with good fluidity can be pressed into tablets.

The single punch machine only installed a punch, the filling depth of the material, the thickness of the tablet can be adjusted to adapt to the pharmaceutical industry to suppress a variety of Chinese and Western pharmaceutical tablets and other industries to suppress the requirements of similar products, by the industry the user's welcome.

TDP 5T Single Punch Tablet Press Machine 220V 50KN Pressure 0

TDP5T Single Punch tablet machine 50KN pressure parameter:

Model	TDP-5T	TDP-6T
Max press pressure kn	50	60
Max tablet diameter mm	20	25
Max fill depth mm	18	18
Max tablet thickness mm	6	7
Production capacity pcs/h	3600	3000
Motor power kw	0.55	0.75
Dimension mm	650440650	750380695
Weight kg	120	165

TDP5T Single Punch tablet machine 50KN pressure Raw material requirements:

Dry powder - The raw material must be dry powder and the moisture content needs to be controlled within 5%.

Liquidity - The raw materials need to have good fluidity (the ideal particle size for tablet pressing raw materials is between 20-60 days, with a small amount of fine powder mixed). If the fluidity of the raw materials is not good, it can be solved through particles. Please refer to the "Granulation Secret Scripts" for details

Adhesion - Adhesion refers to the ability of a powder to agglomerate or stick together through external forces. If the raw materials do not have viscosity, it may be necessary to add adhesives to improve them (such as maltodextrin, sugar, starch microcrystalline cellulose, etc.)

No excessive oil content - If your pressing material contains a large amount of oil, it will be difficult to form, so the material should not contain too much oil.

TDP 5T Single Punch Tablet Press Machine 220V 50KN Pressure 1

TDP5T Single Punch tablet machine 50KN pressure real photos show:

TDP 5T Single Punch Tablet Press Machine 220V 50KN Pressure 5

TDP5T Single Punch tablet machine 50KN pressure pharmacy process:

TDP 5T Single Punch Tablet Press Machine 220V 50KN Pressure 6
