Product Description

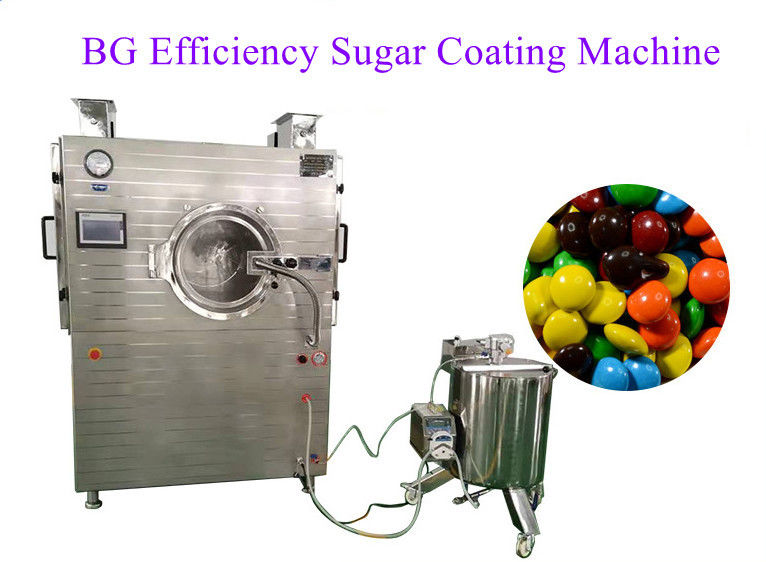

GMP standard BG-150 intelligent sugar coating pan for pill tablets
The BG series sugar coating pan is mainly used in the medical, chemical and food industries. Sugar film coating of tablets, pills, candies, chocolate and other products.
This high efficient sugar coating pan adopts mocrocomputer PLC control and temperature module control system, with a touch screen graphic display.
GMP standard BG-150 intelligent sugar coating pan for pill tablets:
The sugar coating pan through continuously rotary coating drum, let core keeping moving in the drum.
Use suto spray gun covering sugar liquid outside the surface of the core, in pressure working, let core make hot air treatment, to reach dryer core.
Last finished cores coating film, in strong, fine, smooth condition.
GMP standard BG-150 intelligent sugar coating pan for pill tablets:
1. Host: PLC interface, Clear and concise, easy to operate
2. Hot air fan: through secondary filtration, The cleanliness level of hot air reaches to 100000.
Exhaust fan: havethe function of shockproof and automatic re-dust devices.
3. Using ocr18N9 or SUS304, 316L stainless steel material
Programmable PLC adopts Slemens brand.
GMP standard BG-150 intelligent sugar coating pan for pill tablets Main Parameter:
| Model |
BG-5E |
BG-40E |
BG-80E |
BG-150E |
| Capacity (kg/time) |
1-5 |
40 |
80 |
150 |
| Drum speed (r/min) |
2-25 |
1-20 |
2-18 |
2-18 |
| Main motor power (kw) |
0.55 |
1.1 |
1.5 |
2.2 |
| Hot air flow (m3/h) |
|
2010 |
1250/2509 |
1555-2980 |
| Hot air motor power (kw) |
0.55 |
0.75 |
1.1 |
1.5 |
|
Air Exhaust fa flow (m3/h )
|
|
3640 |
2233-3570 |
5210-7419 |
|
Motor power of exhaust blower (kw)
|
0.75 |
2.2 |
3.0 |
5.5 |
| Model |
BG-250E |
BG-350E |
BG-400E |
BG-600E |
| Capacity (kg/time) |
250 |
350 |
400 |
600 |
| Drum speed (r/min) |
2-15 |
2-15 |
2-15 |
2-15 |
| Main motor power (kw) |
3.0 |
3.0 |
4.0 |
5.0 |
| Hot air flow (m3/h) |
1555-2356 |
1555-2356 |
1688-3517 |
1688-3517 |
| Hot air motor power (kw) |
3.0 |
3.0 |
3.0 |
5.5 |
| Air Exhaust fa flow (m3/h ) |
5210-7419 |
5210-7419 |
5712-12062 |
5712-12062 |
| Motor power of exhaust blower (kw) |
7.5 |
7.5 |
7.5 |
11 |
GMP standard BG-150 intelligent sugar coating pan for pill tablets real photos:
GMP standard BG-150 intelligent sugar coating pan for pill tablets Application:
Widely used in the pharmaceutical, chemical, food, electronics, metallurgical industry.
GMP standard BG-150 intelligent sugar coating pan for pill tablets Pharmacy Process:
