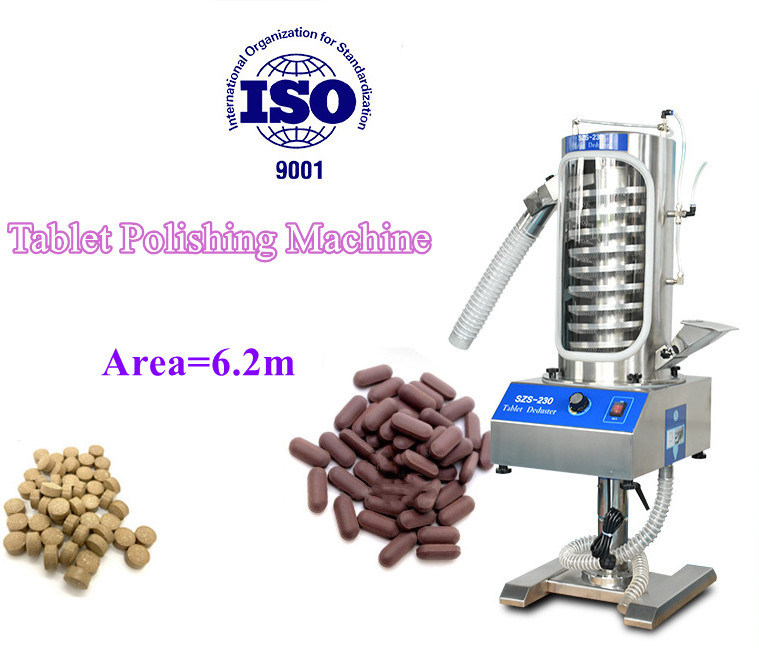

SZS-230 Upward Rotating tablet polishing machine tablet screening machine
The SZS series rotary tablet polishing machine has the characteristics of long dust removal path for tablets, automatic flipping and polishing of tablets, and good dust removal effect.
The material of the contact parts between the machine and tablets is 304, which complies with GMP. It has three functions of tablet polishing, dust removal, and lifting. The machine inlet can be connected to any type of tablet press for use.
SZS-230 Upward Rotating tablet polishing machine tablet screening machine features:
1. The screen body and outer cover of the machine are designed with building blocks, and the outlet height is easy to adjust:
2. The whole machine adopts a quick installation connection structure, making the disassembly and installation of the machine more efficient and clean without blind spots.
3. Both the entrance and exit of the machine can be adjusted with 360 degree rounded corners, which is convenient for production, saves space, and highlights production efficiency. It can meet the mass production of various shaped tablets with a diameter of 3-25mm.
4. Adopting new driving device design to ensure smoother and lower noise operation of the machine.
SZS-230 Upward Rotating tablet polishing machine tablet screening machine Main Parameter:
| Production capacity |
1000000pcs/hour (#4) |
| Dedust distance |
6.2m |
| Power |
150W |
| Tablet range |
Less than 25mm |
| Voltage |
110/220V, 50/60Hz, 1P |
| Air compressor |
0.1m3/min-0.1MPa |
| Vacuum clean |
2.5m3/min-0.1MPa |
| Noisy |
Less tahn 75 |
| Size |
500*550*(1350-1500)mm |
| Weight |
70kg |
| Inlet height |
Lower 650-750; Upper 750-850 |
| Outlet height |
Lower 930-1030; Upper 1030-1130 |
SZS-230 Upward Rotating tablet polishing machine tablet screening machine detail show:
1. The appearance design of the machine is simple, and the parts in contact with the material are entirely made of stainless steel, which meets GMP requirements
2. The feeding and discharging ports are connected to the outer cover through positioning knurled screws, and their assembly and disassembly must be carried out under the reliable connection between the outer cover and the mobile workbench. A dust cover is also added above for better hygiene and safety
3. The feeding and discharging ports are connected to the outer cover through positioning knurled screws, and their assembly and disassembly must be carried out under the reliable connection between the outer cover and the mobile workbench. A dust cover is also added above for better hygiene and safety
4.The machine height is adjustable and can be paired with machines of different heights
After adjustment, simply tighten the handle for easy and convenient operation
5.The circular cover is connected to the square cover through a rotating hand to form a closed working room, avoiding cross contamination of the tablet with the outside during the screening and transportation process, thereby ensuring the safety of the host operation and the cleanliness of the processed tablet. The entire process of screening and transporting tablet dust can be observed through the window.
6.The control knob can be continuously adjusted to change the speed of screening and conveying. The function of the control system is to control the continuous vibration of the screen body, in order to achieve the function of the host screen for removing tablet dust and conveying.
SZS-230 Upward Rotating tablet polishing machine tablet screening machine real photos:
SZS-230 Upward Rotating tablet polishing machine tablet screening machine pharmacy process:
