Water-cooling low temerature Chinese herbal medicine pulverizer machine
This pulverizer machine uses high-speed relative motion between the movable and fixed plates to crush the material through a comprehensive effect of impact, shear, friction, and mutual impact between the materials.
The motion system of the machine rotates continuously at high speed in a unidirectional direction, and is driven by an electric motor, a belt, and a movable disc for high-speed rotation. It uses a single belt rotation to ensure smooth transmission during high-speed rotation. The front cover of the machine is opened after shutdown to clean the internal cavity of the machine and ensure the cleanliness of the working surface. The crushed material can be directly discharged from the machine's abdomen. The fineness of the crushing degree can be achieved through different aperture sieves.
The crushing unit consists of a main unit, a material collection bag, and a dust removal unit, which avoids dust flying during the crushing process of materials. (Equipped as required)
Water-cooling low temerature Chinese herbal medicine pulverizer machine parameter:
| Model |
LFJ-18 |
LFJ-20 |
LFJ-30 |
| Capacity kg/hour |
10-50 |
15-150 |
30-300 |
| Material size mm |
6 |
10 |
10 |
| Crushing fitness mu |
20-200 |
20-200 |
20-200 |
| Power |
2.2 |
4.0 |
5.5 |
| Speed r/min |
5800 |
5300 |
4500 |
| Weight |
80 |
150 |
200 |
| Dimension mm |
680*750*1000 |
750*850*1250 |
800*900*1380 |
Water-cooling low temerature Chinese herbal medicine pulverizer machin details:
1. Stainless steel material, clean and hygienic, in compliance with GMP requirements
2. The high-speed operation of the crushing bin moving knife cuts, collides, and grinds the material in the middle of the toothed disc to achieve the crushing effect
3. Opening and closing
One button control, easy to operate and convenient to use.

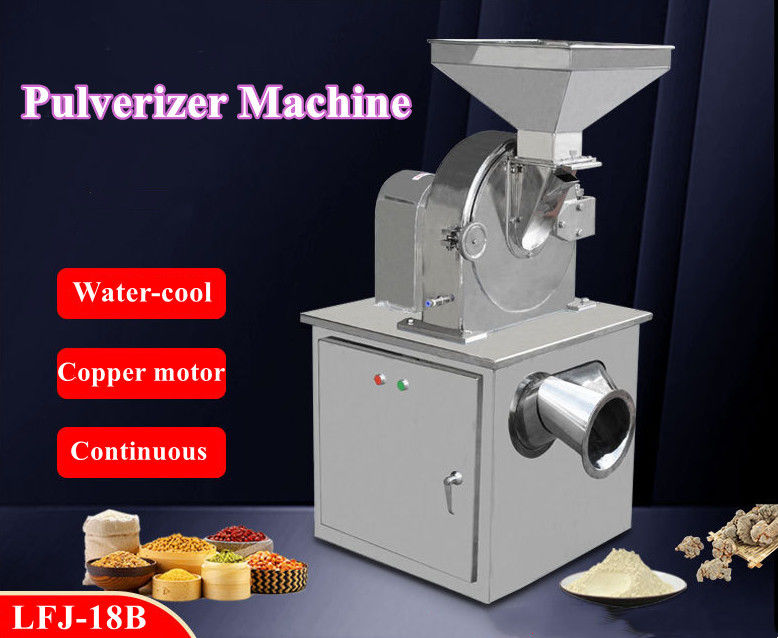

Water-cooling low temerature Chinese herbal medicine pulverizer machine show:
