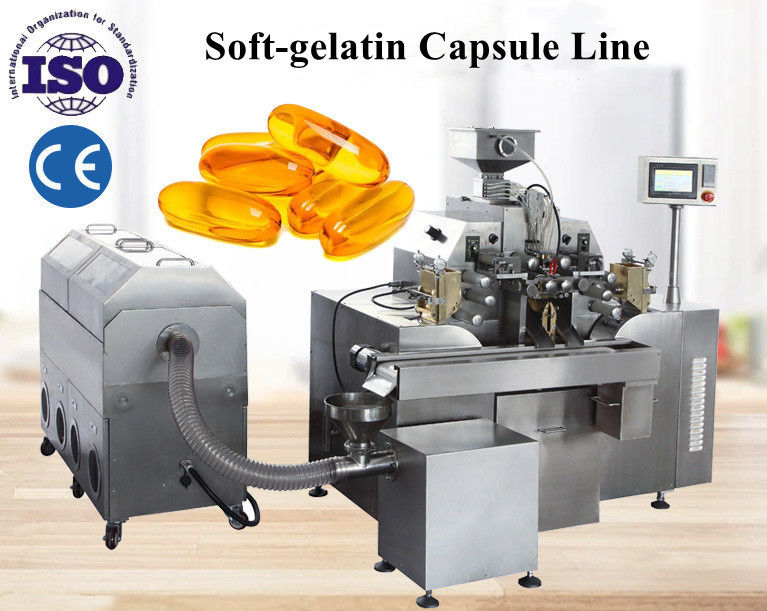

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200
  • Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200
  • Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200
  • Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200
  • Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200
Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200

Place of Origin China
Brand Name FP
Certification CE, GMP
Model Number HSR200
Product Details
Mold Size:
103*200mm
Mold Speed:
0-6rpm
Supply Material:
12*(0-2ml)
Voltage:
AC380V, 50Hz, 6kw
Weight:
1150kg
Dimension:
1700*750*1900mm
Highlight:

soft gelatin capsule filling machine automatic

,

olive shaped soft gelatin capsule filling machine

,

adjustable soft gelatin capsules machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden package
Delivery Time
15-20 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
10 set per hour
Product Description

HSR-200 automatic adjustable olive shaped soft gelatin capsule filling machine

HSR-200 Soft Gelatin Capsule Filling Machine is one of our company's new products which is automated production line.

 The machine use new technology and materials, well-designed, precision manufactured. The mold uses Gas pressure to avoid misoperation of the damage caused by mold, Done to reduce the consumption.Control box using the German Siemens and Siemens PLC programmable control true color touch screen, power control components are imposed to control the electronic control system, stablitly, perfomance, well, soft gelatin capsule filling machine in order to ensure the targets.

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 0
Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 1

HSR-200 automatic adjustable olive shaped soft gelatin capsule filling machine features:
1. SIEMENS PLC control used (Compressive long life).

2. With fault diagnosis function.

3. Simulation of machine images, vivid clear at a glasnce.

4. Simple intuitive operation.

5. Production doubled and upgraded.

6. Round hopper hermostaically.

7. Fully automatic servo control.

8. Ceramic pump rod never wear.


HSR-200 automatic adjustable olive shaped soft gelatin capsule filling machine Main Parameter:
Model
HSR-200
HSR-250
 HSR-300
Roll mold size
103*200mm
150*250mm
 150*300mm
Roll mold speed
0-10rpm
0-8rpm
 0-8rpm
Roll mold pressure
0.1-0.5MPa
0.1-0.5MPa
 0.1-0.5MPa
Supply material
12*(0-2)ml
20*(0-2)ml
 24*(0-2)ml
Filling accuracy
1% -2%
1% -2%
 1%-2%
Motor power kw
380V, 6kw
380V, 8kw
 380V, 8KW
Dimension mm
1700*750*1900
1900*1000*2100
 1900*1050*2100mm
Weight kg
1150
1350
 1400kg



Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 2





Full production line including:

1. Main machine (shot making system) (including one refrigeration machine, one set of rubber wheels, and one set of molds)
Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 3
2. Horizontal dryer (shaping system)

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 4


3. Rubber barrel (rubber system) (equipped with one experimental water ring vacuum pump and one oil-free low noise air compressor)

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 5

4. Drying disc truck (PE material)

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 6

5. Work platform table (made of stainless steel 304 products)



HSR-200 automatic adjustable olive shaped soft gelatin capsule filling machine Application

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 7



HSR-200 automatic adjustable olive shaped soft gelatin capsule filling machine photos:

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 8

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 9

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 10



HSR-200 automatic adjustable olive shaped soft gelatin capsule filling machine Produce:

1. Gelatinization

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 11

2. Produce soft capsules

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 12

3. Dryer

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 13

4. Choose soft capsules

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 14

5. Automatic capsule bottling line

Adjustable Olive Shaped Soft Gelatin Capsule Filling Machine Automatic HSR-200 15
