DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine
  • DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine
  • DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine
  • DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine
DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine

Place of Origin China
Brand Name FP
Certification CE, GMP
Model Number HSR250
Product Details
Mold Size:
150*250mm
Mold Speed:
0-8rpm
Supply Material:
20*(0-2ml)
Voltage:
AC380V, 50Hz, 8kw
Weight:
1350kg
Dimension:
1900*1000*2100mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden package
Delivery Time
15-20 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
10 set per hour
Product Description

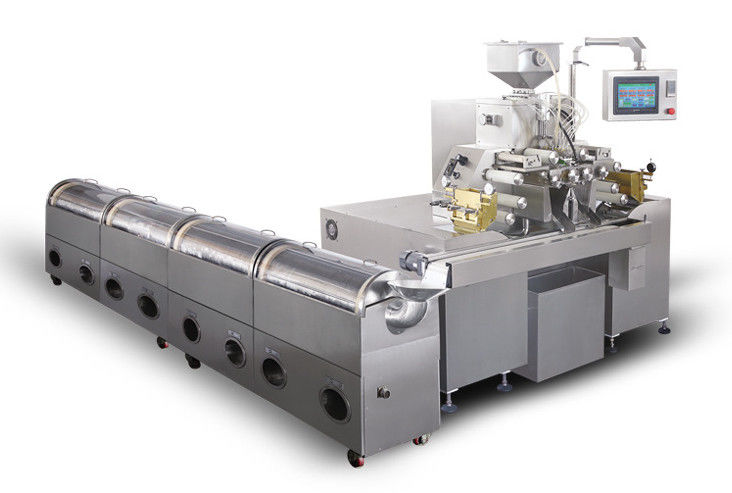

HSR-250 DHA fish oil soft gel capsule filling machine produce line with GMP standard

HSR-250 series soft gel capsule filling machine belongs to the production type equipment, with an annual production capacity of 250 million and 300 million or more per unit, respectively. The entire equipment has a compact structure and stable performance, suitable for the food, pharmaceutical, cosmetics, and chemical industries.

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 0
DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 1

HSR-250 DHA fish oil soft gel capsule filling machine produce line with GMP standard features:
1. The matching design between the mold and the mold shaft avoids damage during the mold loading and unloading process.
2. A dedicated injection body assembly fixture that protects the injection body from damage during loading and unloading, and reduces the operator's labor intensity;.
3. Install lighting fixtures at the bottom of the mold to facilitate quality inspection during the production process.
4. All daily maintenance parts are simplified in design, convenient and fast.
5. Professional industrial aesthetic design, making the overall appearance of the machine beautiful and elegant, concise and clear, refreshing and pleasing to the eye.


HSR-250 DHA fish oil soft gel capsule filling machine produce line with GMP standard Main Parameter:
Model
HSR-200
HSR-250
 HSR-300
Roll mold size
103*200mm
150*250mm
 150*300mm
Roll mold speed
0-10rpm
0-8rpm
 0-8rpm
Roll mold pressure
0.1-0.5MPa
0.1-0.5MPa
 0.1-0.5MPa
Supply material
12*(0-2)ml
20*(0-2)ml
 24*(0-2)ml
Filling accuracy
1% -2%
1% -2%
 1%-2%
Motor power kw
380V, 6kw
380V, 8kw
 380V, 8KW
Dimension mm
1700*750*1900
1900*1000*2100
 1900*1050*2100mm
Weight kg
1150
1350
 1400kg



DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 2





Full production line including:

1. Main machine (shot making system) (including one refrigeration machine, one set of rubber wheels, and one set of molds)
DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 3
2. Horizontal dryer (shaping system)

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 4


3. Rubber barrel (rubber system) (equipped with one experimental water ring vacuum pump and one oil-free low noise air compressor)

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 5

4. Drying disc truck (PE material)

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 6

5. Work platform table (made of stainless steel 304 products)



HSR-250 DHA fish oil soft gel capsule filling machine produce line with GMP standard Application

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 7

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 8



HSR-250 DHA fish oil soft gel capsule filling machine produce line with GMP standard photos:

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 9

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 10

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 11



HSR-250 DHA fish oil soft gel capsule filling machine produce line with GMP standard Produce:

1. Gelatinization

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 12

2. Produce soft capsules

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 13

3. Dryer

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 14

4. Choose soft capsules

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 15

5. Automatic capsule bottling line

DHA Fish Oil Soft Gelatin Capsules Machine GMP Standard Auto Capsule Filling Machine 16
