ZP5/7/9A pill pressing machine is a single pressure automatic rotary tablet press, suitable for multi industry tablet press, simple operation, stable rotation, large output, safe and accurate.
Structural Features of CE certificate pill pressing machine ZP5A small rotary candy milk tablet press machine:
1. It is mainly used for tablet production in the pharmaceutical industry, and is also suitable for industrial sectors such as chemical, food, and electronics. The outer enclosure is a fully enclosed form, made of stainless steel, and the internal countertop is made of stainless steel material;
2. The surface of the turntable has undergone special treatment to maintain surface gloss and prevent cross contamination, meeting GMP requirements;
3. Suitable for multi industry tablet pressing, simple operation, smooth rotation, large output, safe and accurate;
4. Doors and windows equipped with transparent glass, capable of observing the pressing status and opening, easy to clean and maintain.
Main Technical of CE certificate pill pressing machine ZP5A small rotary candy milk tablet press machine:
| Model |
ZP5A |
ZP7A |
ZP9A |
| Punch die |
5 set |
7 set |
9 set |
| Capacity pcs/hour |
9000 |
12600 |
16200 |
| Max press kn |
40 |
40 |
40 |
| Press diameter mm |
12 |
12 |
12 |
| Press thickness mm |
6 |
6 |
6 |
| Filling thick mm |
15 |
15 |
15 |
| Rotary speed r/min |
30 |
30 |
30 |
| Power kw |
1.5 |
1.5 |
1.5 |
| Weight kg |
180 |
180 |
180 |
| Dimension mm |
480*630*1100 |
480*630*1100 |
480*630*1100 |

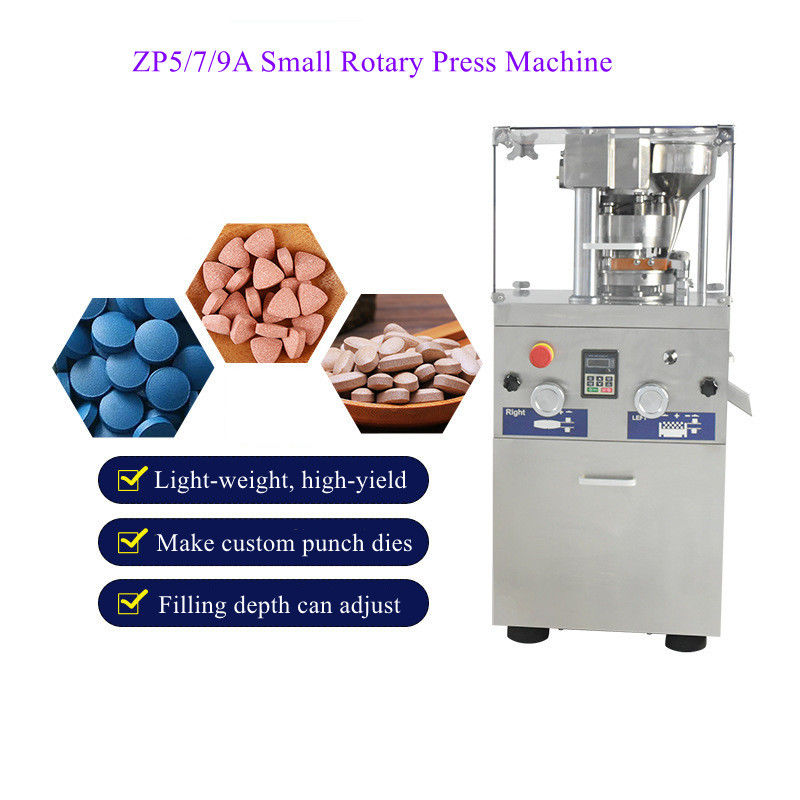

Real Photos of CE certificate pill pressing machine ZP5A small rotary candy milk tablet press machine:
