Automatic Tablet counting bottle filling machine

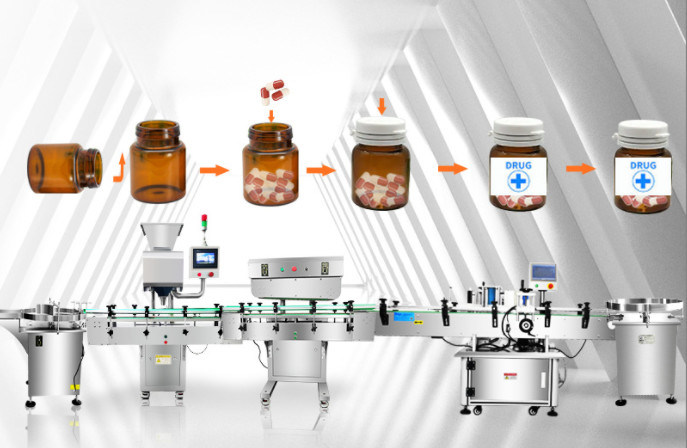

Automatic bottle filling production line, consists of automatic bottle unscrambler, automatic multi-head (counting) filling machine, desiccant feeding machine, automatic capping and capping machine, electric Magnetic induction aluminum foil sealing machine, automatic labeling machine.
It is suitable for the whole process of technical filling, capping, sealing, labeling and other packaging of candy, food, health products, daily chemical and other industries.
Main Parameter
Production Line Machinery Show:
1. LP-650 Automatic Bottle Arrangement
The motor drives the bottle-arranging faceplate to work through gear transmission. The bottles in the bottle bucket are rotated from the bottom of the bottle-arranging flower plate to the top of the bottle-arranging plate through the semi-circular groove of the bottle-arranging flower plate. The bottom-up bottle is turned over to complete the bottle.
2. SL-16H Electronic Counting Machine
The bottle blocking device on the bottle feeding track of the bottle conveying mechanism will block the bottle conveyed by the upper equipment at the bottling position and wait for filling. The medicine enters the medicine warehouse in an orderly manner through the vibration of the feeding corrugated plate, and a counting photoelectric sensor is installed on the medicine warehouse.
3. SR-10 Desiccant Stuffing Machine
The bottle blocking cylinder on the bottle feeding track of the bottle conveying mechanism blocks the bottle conveyed by the upper equipment at the position where the desiccant is filled, waiting for the desiccant to be filled, and the bottle mouth is aligned with the shearing mechanism. The stepper motor drives the bag feeding mechanism to pull the desiccant bag out of the desiccant bag tray. The color sensor detects the desiccant bag and controls the length of the bag. The scissors cut the desiccant bag and put it into the bottle.
The conveyor belt of the bottle conveying mechanism The filled desiccant bottle is delivered to the next equipment, and at the same time, the desiccant bottle to be filled is replenished to the position where the desiccant bag is filled.
4. Automatic High-Speed Capping Machine
5. Electromagnetic Foil Sealing Machine
The bottle with aluminum foil passes under the induction head, the aluminum foil is heated by the energy generated by the induction head, and the heated aluminum foil melts the plastic film compounded on the aluminum foil and tightly bonds with the bottle mouth to obtain a sealing effect.
6. TBJ1520 Type Self-Adhesive Round Bottle Labeling Machine
The bottles that need to be labeled are transported by the bottle feeding track, and the bottles are pulled equidistantly by the bottle distance adjustment mechanism.
The photoelectric sensor senses the passing bottles and sends out a signal. The paper tape is tensioned and coded by the coding machine, and the photoelectric sensor for marking paper positioning is positioned according to the length of the marking paper, so that the length of a piece of marking paper pulled out from the marking paper is equal.
The label paper is automatically peeled off, and it is flatly attached to the required position of the bottle to complete the entire labeling process.
Bottle counting filling machine production line real photos:
