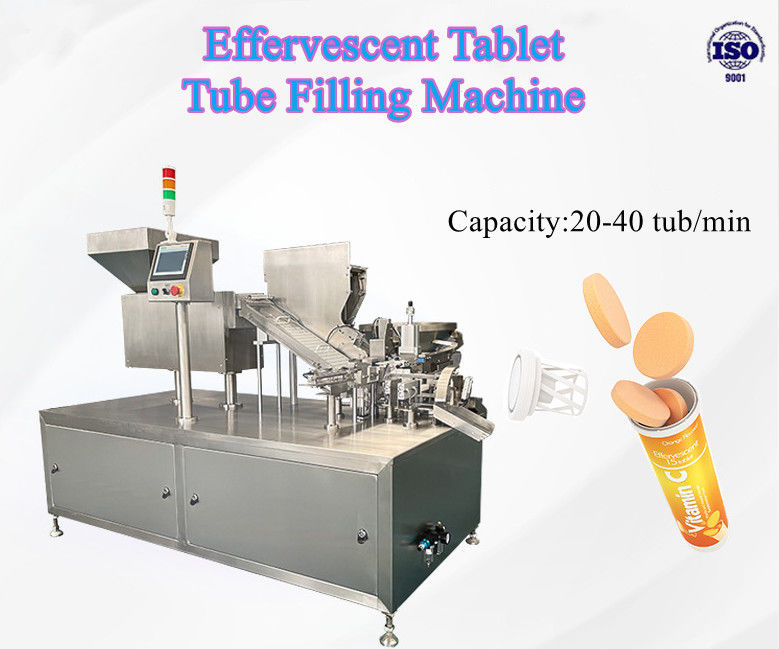

Automatic Effervescent Tablet Tube Filling Machine for VC
The effervescent tablet tube filling packaging machine is suitable for packaging large, thin, single row ordered, overlapping tube bottles. The equipment is all controlled by a programmable controller, with fiber optic and photoelectric detection, stable performance, reliable operation, and automatic operation.
When there are situations such as no chips, missing bottles, or missing caps, an alarm can be triggered and the machine will automatically shut down.
The contact part between the equipment and the tablet is made of 316L stainless steel material, which fully complies with GMP requirements.
It is the most ideal equipment for packaging effervescent tablets in pharmaceutical factories, health product factories, food factories, and similar packaging.
Automatic Effervescent Tablet Tube Filling Machine for VC parameter:
| Model |
PT-150 |
| Tablet type |
Diameter 18-26mm, thickness 6+-0.3mm |
| Bottle type |
Diameter 23-29mm, height 85-144mm |
| Speed |
20-40 bottle/min |
| Fill number |
10-20 adjust |
| Power |
220V/50HZ, 1.5KW |
| Air |
0.6MPa, 5.0L/min |
| Hopper |
30L |
| Weight |
640kg |
| Dimension |
2000*1700*1500mm |
Electric Configuration:
| Name |
Brand |
| Speed adjust button |
Maili |
| Switching power supply |
Delixi |
| Main motor |
Maili motor |
Disc type glass plastic bottle feeding machine for tablet bottle packing machine real photos:
