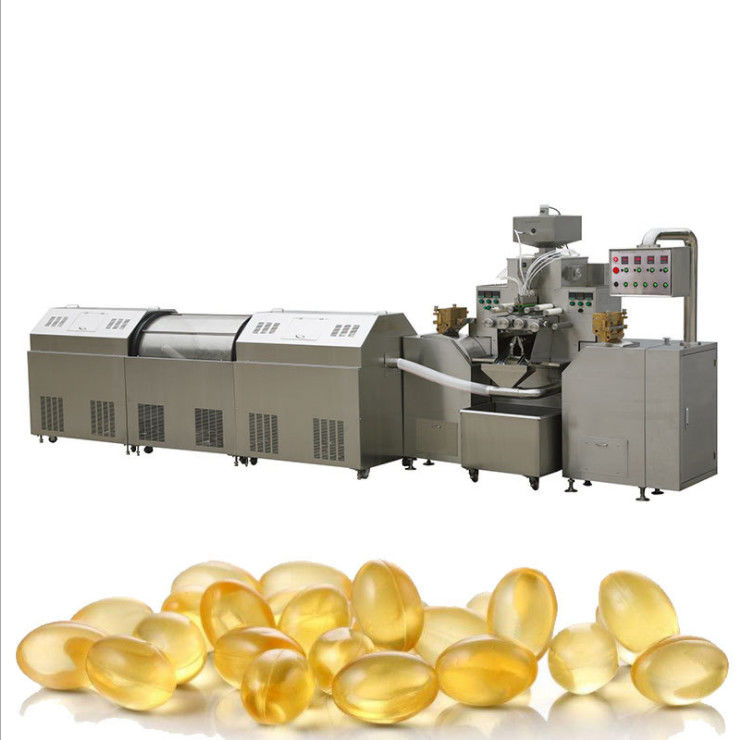

HSR-300 high quality liquid oil soft gel encapsulation machine capacity 178500pcs/hour
The fully automatic soft gel encapsulation machine production line can quantitatively inject oil liquids, suspensions, or paste substances into the adhesive film to form sealed soft capsules of different sizes, shapes, and colors.
The soft gel encapsulation machine adopts a professional motion controller for synchronous control, making the synchronous operation of the servo motor comparable to mechanical transmission.
The mold is automatically aligned, the injection time is automatically adjusted, and the loading amount is automatically adjusted. Online automatic calculation of material density, quick adjustment to ensure accurate loading.
HSR-300 high quality liquid oil soft gel encapsulation machine capacity 178500pcs/hour features:
1. The parts in contact with the medicine and gelatin of this machine are made of materials that are non-toxic and harmless to the human body, and there will be no falling objects mixed into the medicine. In the design and production, the safety of the operator, as well as the convenience of operation and cleaning, are fully considered.
2. Strong production capacity, capable of producing 370 million pills per year (taking the 200C model as an example, Olive shaped No. 8, 3 revolutions per minute, 24 hours per day, 300 days per year).
3. The injection part adopts advanced linear transmission system to ensure a filling accuracy of 2%. The intact rate of capsule encapsulation is over 98%.
4. Adopting automatic glue and material supply system engineering to reduce labor intensity of workers, improve working environment, and comply with GMP standards.
5. The liquid level inside the gelatin box is automatically at a constant position, and the dial gauge assists in displaying the thickness of the rubber, making it easy and accurate to adjust.
6. Excellent water cooling system to avoid pollution caused by air.
7. Rubber lubrication adopts micro oil supply technology, which reduces oil consumption to a very low level.
8. High quality capsule conveying device, using food conveyor belts approved by the US FDA, non-toxic, non stick, and easy to clean.
9. The optimized design of the mold uses high-quality aviation alloy materials, high-precision CNC machining, and special surface treatment to ensure the service life of the mold.
10. Advanced processing and assembly technology ensures stable quality of the entire machine, ensuring stable quality of shot pressing, high machine loading rate, and good shot shape.
11. If lubricated with vegetable oil, there is no need to wash the pills (without printing).
HSR-300 high quality liquid oil soft gel encapsulation machine capacity 178500pcs/hour Principle:
1.The rubber prepared by the rubber wheel boxes on both sides of the host machine relatively enters the seam of the roling die.
2.The liquid medicine is injected into the wedge-shaped spray body through the quide tube through the feed pump.
3.With thepressure of the feed pump, the liquid medicine and rubber are pressed into the qrooves of the two roling dies, Because of the continuous rotation of the rollng die, the two rubber sheets form two seml defined types to encapsulate the liquld medicine in the rubber film, The remaining rubber sheets are cut off and separated into a mesh, commonly known as the rubber mesh.
HSR-300 high quality liquid oil soft gel encapsulation machine capacity 178500pcs/hour Main Parameter:
|
Model
|
HSR-200
|
HSR-250
|
HSR-300 |
|
Roll mold size
|
103*200mm
|
150*250mm
|
150*300mm |
|
Roll mold speed
|
0-10rpm
|
0-8rpm
|
0-8rpm |
|
Roll mold pressure
|
0.1-0.5MPa
|
0.1-0.5MPa
|
0.1-0.5MPa |
|
Supply material
|
12*(0-2)ml
|
20*(0-2)ml
|
24*(0-2)ml |
|
Filling accuracy
|
1% -2%
|
1% -2%
|
1%-2% |
|
Motor power kw
|
380V, 6kw
|
380V, 8kw
|
380V, 8KW |
|
Dimension mm
|
1700*750*1900
|
1900*1000*2100
|
1900*1050*2100mm |
|
Weight kg
|
1150
|
1350
|
1400kg |
Full production line including:
1. Main machine (shot making system) (including one refrigeration machine, one set of rubber wheels, and one set of molds)
2. Horizontal dryer (shaping system)
3. Rubber barrel (rubber system) (equipped with one experimental water ring vacuum pump and one oil-free low noise air compressor)
4. Drying disc truck (PE material)
5. Work platform table (made of stainless steel 304 products)
HSR-300 high quality liquid oil soft gel encapsulation machine capacity 178500pcs/hour Application
HSR-300 high quality liquid oil soft gel encapsulation machine capacity 178500pcs/hour photos:
HSR-300 high quality liquid oil soft gel encapsulation machine capacity 178500pcs/hour Produce:
1. Gelatinization
2. Produce soft capsules
3. Dryer
4. Choose soft capsules
5. Automatic capsule bottling line
